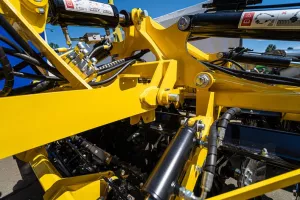

What Safety Precautions Should You Take When Working with Hydraulic Cylinders?

<p>Hydraulic cylinders are used for various tasks that involve pulling, lifting, bending, or holding. With so many ways they can be used, comes a lot that can go wrong. </p> <figure class="image-right" style="max-width: 390px;"><img src="/uploads/images/safety tips (2).png" data-image="safety tips (2).png" width="390" height="976"></figure> <h4>To avoid the risk of harm while using such cylinders, there are many safety precautions you need to consider.</h4> <p><strong>80% Rule</strong></p> <p>When it comes to setting up an optimal hydraulic system, your primary concern should always revolve around safety, both for yourself and others involved. When using hydraulic cylinders, it is advisable to limit usage to only 80% of the load and stroke ratings, as most loads are not lifted on their true centre, which introduces an external side load force and increases the risk of load instability.</p> <p><strong>Provide Support</strong></p> <p>For a cylinder to operate safely and efficiently, it necessitates to operate on a firm and level base. This implies that the cylinder's operation should be placed flat on the ground, i.e. stabilizer legs or outrigger on a crane. It's crucial to ensure that the surface beneath the cylinder is free from any debris. If you have any doubts about the stability of the surface, it's recommended to employ a base plate for added stability.</p> <p><strong>Pressure Gauge</strong></p> <p>A pressure gauge is a vital component of any hydraulic system. Using a pressure gauge helps to monitor the force applied on the cylinder within the reasonable margin of safety. This is not only important for safety, but it is also necessary for maintaining the quality of your equipment.</p> <p><strong>Cylinder Condition</strong></p> <p>Before using a hydraulic ram cylinder, it's crucial to inspect it for signs of damage. If any damage is detected, the cylinder may not function properly and should not be used. There are various reasons why a cylinder might not work correctly which could cause system failure that leads to safety hazards and injury.</p> <h4>Reasons why a cylinder may not function properly:</h4> <ul> <li>A cylinder will not extend if the coupler is not fully tightened, the pump is worn, the oil level is too low, the pump is malfunctioning, or the pump pressure relief valve is set too low. Additionally, if the cylinder is already at full stroke, it will not extend further.</li> <li>If a cylinder only extends partially, this may be due to insufficient oil capacity or an external obstruction or bent rod.</li> <li>When a cylinder does not extend smoothly, it could be due to air in the system.</li> <li>If a cylinder extends but cannot hold the load, it may be due to leaking seals, a malfunctioning pump or valve, or a leaking connection.</li> <li>Cylinder leakage may occur due to cylinder or seal damage or a loose connecter.</li> <li>Cylinders may be slow to retract or not retract at all, this can be caused by a loose piston seal carrier or damaged piston seals, or worn hydraulic pump.</li> </ul> <h3>Replacing hydraulic cylinder seals and parts</h3> <p>FPE Seals provide <a href="https://www.fpeseals.com/cylinder-parts">replacement parts</a> for all hydraulic cylinders and specialise in providing sealing solutions for aftermarket and OEM applications. View what is on offer on our website or contact one of our knowledgeable team today who are happy to advise on finding you exactly what you need.</p> <p><a href="https://www.fpeseals.com/contact" class="button medium">CONTACT US</a></p>

Rod Vee-Packing Seals

Rod T-Seals

Rod Composite Seals

U-Ring Rod Working Seals

Rubber & Fabric Rod Seals

D Rings

Washers

OP Seals

O Rings with Back Up Rings

Static Seals

Quad Rings

O Rings

Back Up Rings

Pneumatic Piston Seals

Pneumatic Guiding Wiper Seal

Pneumatic Wiper Seals

Pneumatic Cushion Seals

Pneumatic Complete Piston Seals

U-Ring Seals

Piston T-Seals

Split Piston Seals

Solid Piston Seals

Rubber & Fabric Piston Seals

Grooved Piston Seals

Cup Seals

Piston Composite Seals

Piston Rings

Hydraulic Complete Piston Seals

Piston Vee-Packing Seals

Guide Ring Wipers

Metal Cased Wipers

Flexible Wipers

Double Lipped Wipers

Wiper Composite Seals

Cushioning Rings

Retaining Rings

Guide Strip

Guide Rings

V-Seals

Rotary Seals

Oil Seals

Seal Kits by Manufacturer

MAXI Kits

Service Kits

O Ring Kits

Caterpillar Locknuts

Seal Kits for Mini Excavators

Swivel Joint Seal Kits

Vibra-Tite

Verniers

Pick Sets

Tools

Machined Piston Seal

Machined Gasket Seal

Machined Backup Ring

Machined Guide Ring

Machined Rotary Seal

Machined Wiper

Machined Rod Seal

Single Acting Cylinders

Double Acting Cylinders

Breathers

Cushioning Components

End Caps

Glands

Locking Nuts

Flanges

Tubes

Rods

Plugs

Pistons

Ports

Connection Tubes

Weldable Trunnions

Radial Ball Joints

Fixed Eyes

Weldable Bosses

Bushes

Fork Ends

Ball Joint Ends

Clamps

Gauges

Lubrication

Locking

Pins

Trailer Brake Rams

Spanners

Hand Pumps

Snap Rings

Circlips

Couplings

Overcentre Valves

Flow Control Valves

Check Valves

Burst Valves

Hose Protection

Protection Plugs

Protection Caps

Cylinders in Kit Form

Piston Seal Kits

Gland Seal Kits

DC-Other-ANSI

DC-Other-General Process

SC-Multispring-Other

SC-Multispring-API

SC-Multispring-General Process

SC-Multispring-ANSI

SC-Single Spring-ANSI

SC-Single Spring-General Process

SC-Bellows-Others

SC-Bellows-API

SC-Bellows-General Process

SC-Bellows-ANSI

SC-Other-Other

DC-Multispring-API

DC-Multispring-General Process

DC-Multispring-ANSI

DC-Bellows-API

DC-Bellows-ANSI

SPL-Multispring-General Process

Bellows

Simple Spring

Wave Spring

Multispring

BORNEMANN®

ARMSTRONG®

APV®

APEC®

ALLWEILLER®

ALFA LAVAL® (CONTHERM®)

ALFA LAVAL®

AFEC®

ABS®

GORMAN-RUPP®

GRUNDFOS-SARLIN®

GRASSO®

FRISTAM®

FRICK®

FLYGT®

EMU®

EBARA®

CN-PUMPS®

CALPEDA®

JOHNSON®

JABSCO®

INBEAT®

IMO®

HOWDEN®

HISAKA®

HILGE®

HIDROSTAL®

HERBORNER®

KSB®

PUMPEX®

PEDROLLO®

NOCHI®

NIKUNI PUMPA®

MYCON®

MOUVEX®

MARELLI®

LOWARA®

SEDICAL®

TUCHENHAGEN®

TSURUMI®

SUNTEC®

SOMEFLU®

SALMSON®

SABROE®

WITT®

WILO®

WAUKESHA®

VIKING®

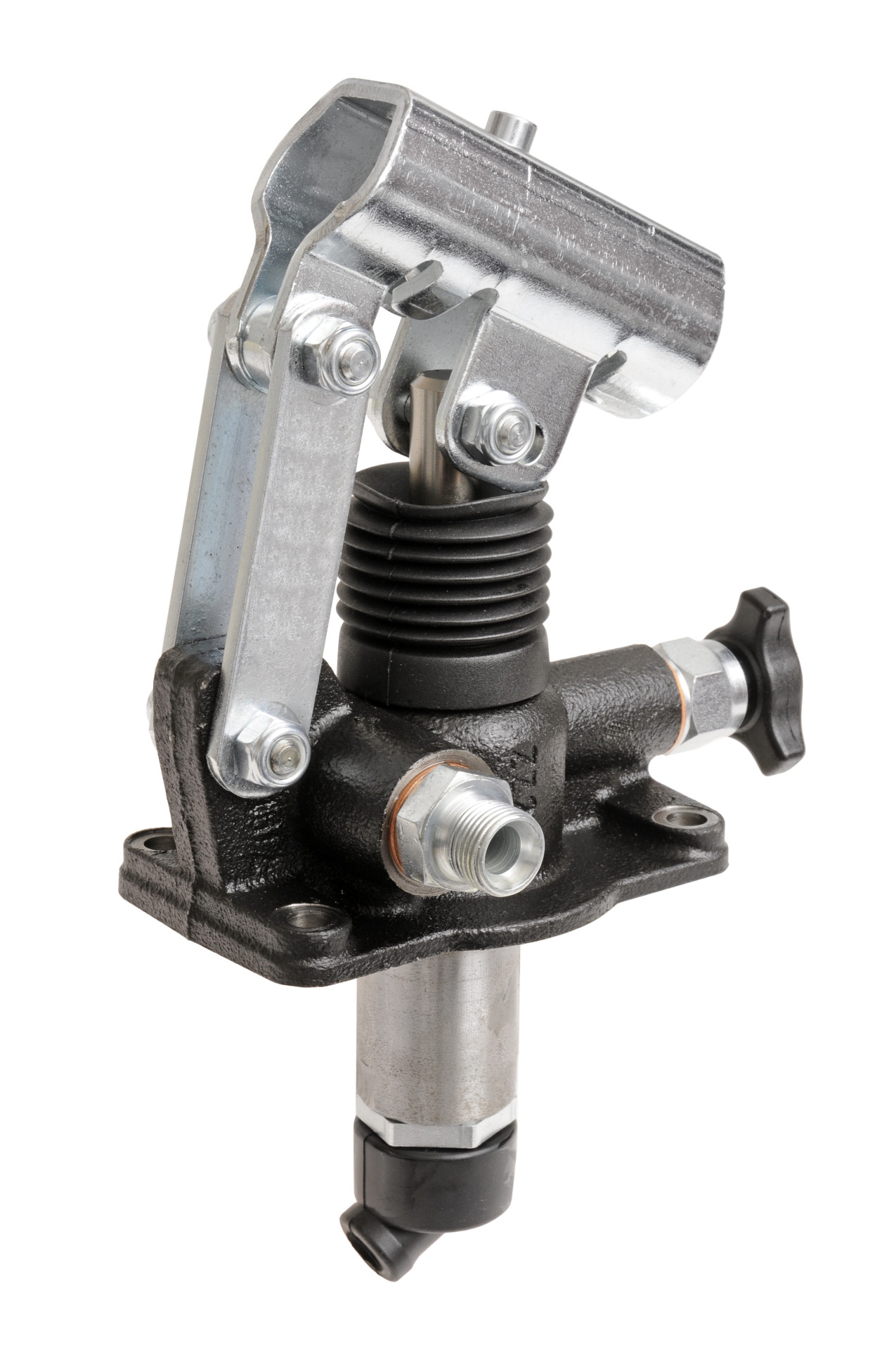

What are hydraulic hand pumps used for?

Hydraulic hand pumps are commonly used to load and test machinery components, as well as in handling machinery for raising and lowering heavy objects. By operating the hand lever, users can create pressure, enabling the lifting, pushing, or bending of heavy objects with ease.

Types of Hydraulic Handpumps

There are two types of hydraulic hand pumps:

Single Acting Hand Pumps	Double Acting Hand Pumps
Supplies a single flow in a dual-action hand pump.	Supplies a single flow in a dual action hand pump, fitted with an additional lever to divert the flow.
Simple in design and easier to maintain.	More complicated to maintain and repair
Commonly used in hydraulic jacks.	Used in a wider range of applications, including aircraft hydraulic systems.
More strokes are needed to generate the pressure and movement	Less strokes are needed to generate the pressure compared to single acting hand pump
Slower in operation.	Preferred for speed and efficiency

Applications of Hydraulic Handpumps

Hydraulic Systems Testing: Hydraulic hand pumps are frequently employed to test and troubleshoot hydraulic systems. They enable manual pressurisation of the system, facilitating leak detection and evaluation of overall system performance.

Hydraulic Jacks: Used to operate hydraulic jacks, which are widely employed for lifting heavy loads or vehicles. By operating the hand pump, hydraulic pressure is generated, causing the jack to extend and elevate the load.

Hydraulic Tools: Provide the necessary pressure to operate hydraulic tools, including crimpers, cutters, and presses. These tools find applications in sectors such as construction, automotive, and manufacturing, where manual operation is required.

Agricultural Machinery: Powers hydraulic systems in agricultural machinery such as tractors & loaders. They enable manual operation of hydraulic functions, including lifting and tilting attachments or adjusting hydraulic system pressure.

Laboratory and Testing Equipment: Used in laboratories and testing facilities for various purposes, such as calibrating pressure gauges, testing pressure sensors, and conducting experiments requiring controlled hydraulic pressure.

Marine and Offshore Applications: Utilised in marine and offshore environments for tasks such as operating hydraulic steering systems, lifting heavy equipment, or controlling hydraulic winches and cranes.

FPE Seals offers a range of hydraulic handpumps including single acting hand pumps, double acting handpumps & stand-alone handpumps with various capacities. If you can't find what you're looking for, feel free to get in touch with our knowledgeable team for further advice and information about our products, including a full range of hydraulic ram components.
